Our synchronous belt has low noise during operation, which can prevent tooth interference during meshing. The transmission accurate, very smooth,  and has constant transmission ratio

Product Description

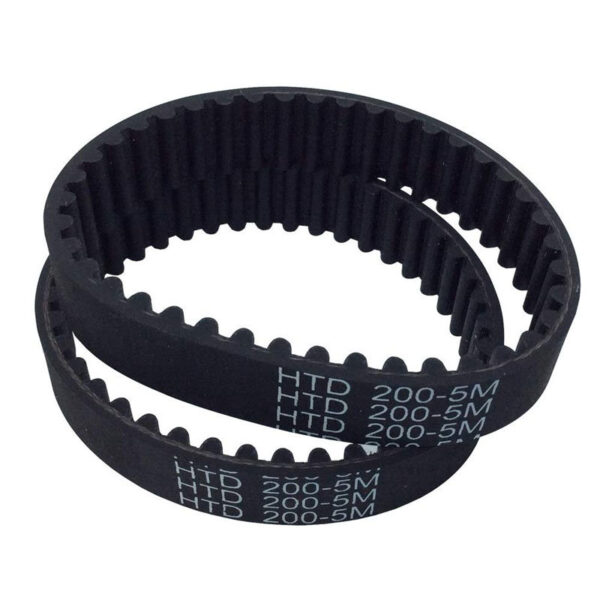

1.Product Name:Timing Belt

2.Material:Rubber, Steel reinforced, nylon elastic fabric, fiberglass cord

3.Function:Power transmission, Mechanical Transportation

4.Working Temperature:+30°C to +80°C, Instant high temperature: +110°C

5.Application:Office equipment, textile machinery, automotive equipment, machine tools, food machinery, printing and packaging equipment, construction machinery, home appliance equipment, etc

6.Property:

. Excellent dynamic curve performance;

. Good anti-cracking properties;

. Superior ozone-proof peformance;

. Wear resistant & Heat resistant;

. Good anti-aging performance;

. Corrosion-resistant;

. Bending resistance, not easily deformed;

7.Structure :

. Back & Tooth Rubber: High quality Neoprene,provides protection against oil,grease,heat and aging.

. Fiberglass Tension Layer: Glass fiber cord,provides high strength,good  flexing performance and elongation

. Tooth Surface: nylon canvas,Nylon fabric,provides resistance  to abrsion and tooth shear

8.Teeth profile:

HTD Arc tooth timing belt:HTD2M、HTD3M、HTD5M、HTD8M、HTD14M、HTD20M

STD Arc tooth timing belt:S2M、S3M、S4.5M、S5M、S8M、S14M

Double sided tooth timing belt:DA5M、DA8M、DA14M、DA-H、DA-L、DA-S8M

Trapezoidal tooth timing belt:XL、L、H、XH、XXH、T5、T10

9.Package:Packed in carton

10.Shipment:by sea,by air,by express

Product Specification

Toothed Type	Type	Pitch	Tooth height	Belt thickness
Trapezoidal toothed	MXL	2.032	0.51	1.14
	XXL	3.175	0.76	1.52
	XL	5.08	1.27	2.3
	L	9.525	1.91	3.6
	H	12.7	2.29	4.3
	XH	22.225	6.35	11.2
	XXH	31.75	9.53	15.7
T-toothed	T2.5	2.5	0.7	1.3
	T5	5	1.2	2.2
	T10	10	2.5	4.5
	T20	20	5	8
	AT5	5	1.2	2.7
	AT10	10	2.5	5
	AT20	20	5	8
Arc toothed	2M	2	0.75	1.36
	3M	3	1.17	2.4
	5M	5	2.06	3.6
	8M	8	3.38	5.8
	14M	14	6.02	10
	20M	20	8.4	13.2
S-toothed	S2M	2	0.76	1.36
	S3M	3	1.14	2.3
	S5M	5	1.91	3.4
	S8M	8	3.05	5.3
	S14M	14	5.3	10.2
Parabolic toothed	P2M	2	0.76	1.36
	P3M	3	1.15	1.95
	P5M	5	1.95	3.5
	P8M	8	3.2	5.5
	P14M	14	6	10
G.Y-toothed	G2M	2	0.75	1.35
	G3M	3	1.14	2.4
	G5M	5	1.93	3.8
	Y8M	8	3.02	5.2
